Z97 Force LN2 Direct Die Frame
Cooler holes for your um…… board that didn’t have cooler holes?

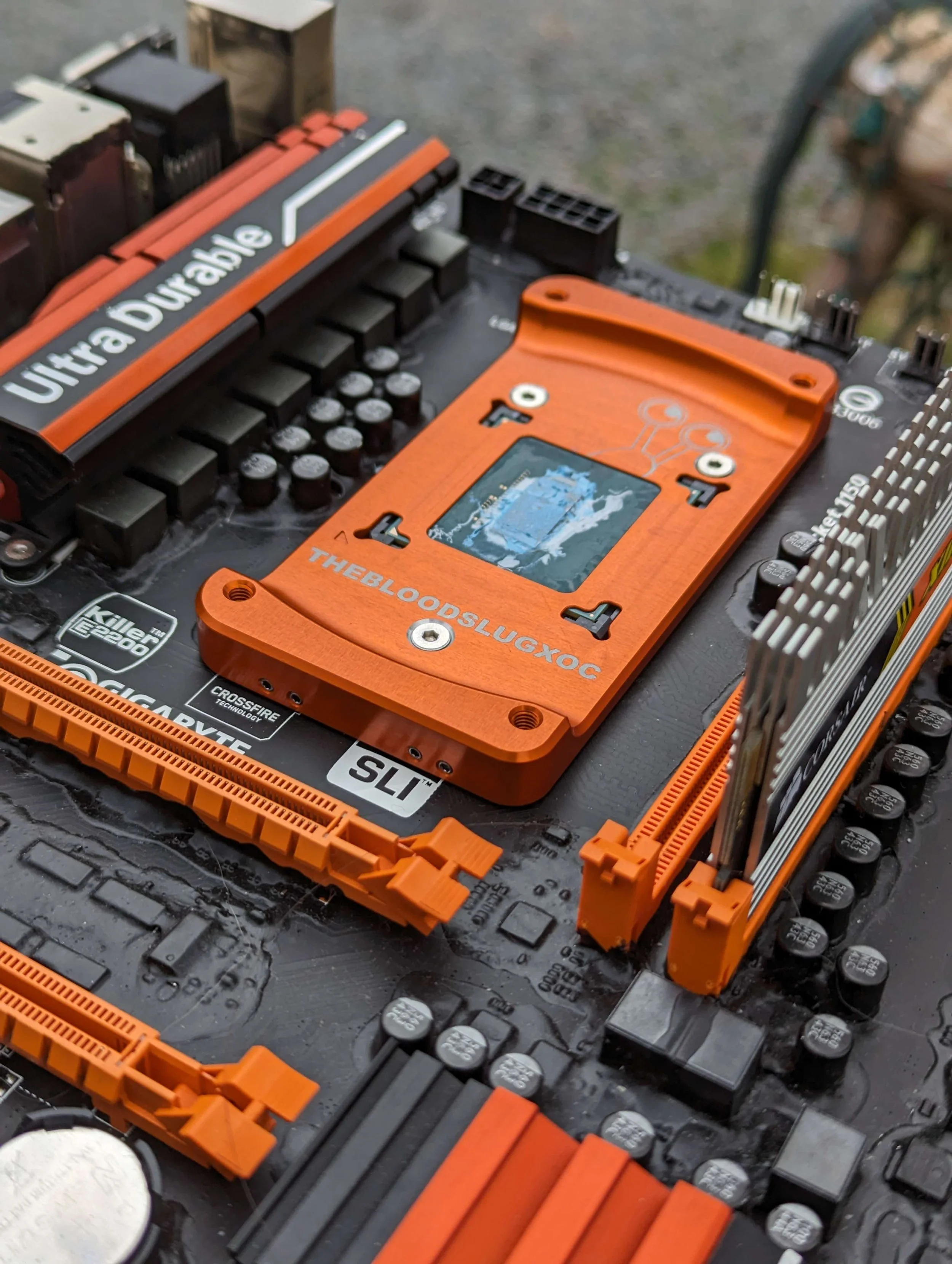

Straight to the point, if you are here you know why you need this. Replaces the stock ILM allowing for direct die cooling WHILE adding cooler retention. Cooler pattern is AM3 and uses m4 Threads. Made from 7075 billet aluminum for increased strength and anodized orange to match the theme of the board. Along the top and bottom side is 4 set of setscrews with hardened pins inserted. These aid in reducing deflection of the bracket when tightening the cooler.
Available bundles:
1. A Single frame (Comes with screws for attaching to stock ILM backplate and a L-key)
2, A Single frame (Everything listed above), With modded Omega heater backplate and longer screws (Short and long included)
3. A Double pack of frames. (Add 2 frames to your cart and get $20 off total ($10 off each frame).) Use promocode “Z97DOUBLE” at checkout for this pricing to apply.
Instructions: Pretty easy, T20 removes the stock ILM, 2mm Hex key (included) installs the new frame. IMPORNTANT! Do not over torque frame, damage can occur! Once all three screw heads touch the frame completely, only 2/3-7/8 of a single rotation is needed.
